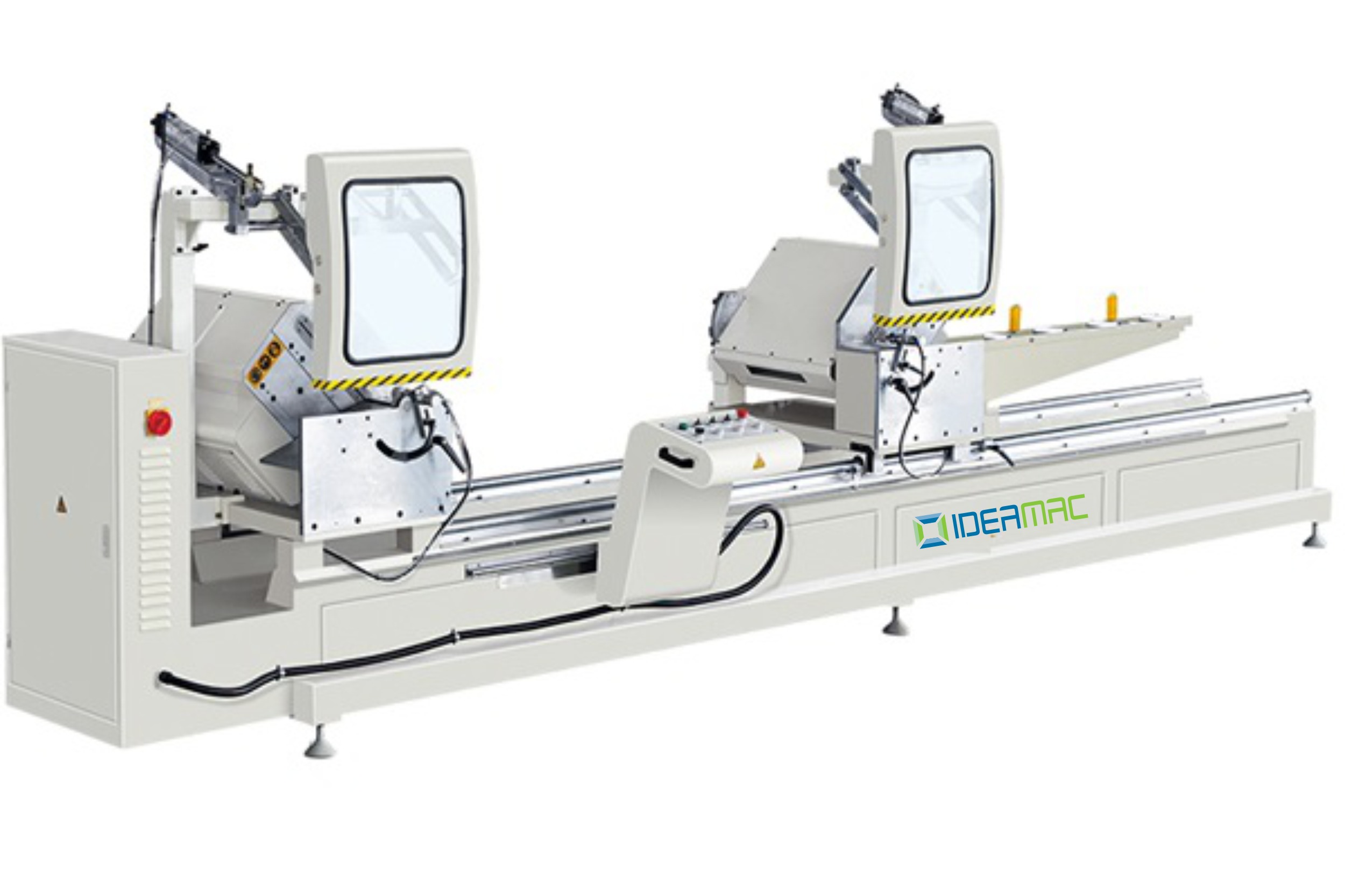

Double Head Cutting Machine for Aluminium Window - LJZ2 - 450 X 3700Z
Double Head Cutting Machine for Aluminium Window - LJZ2 - 450 X 3700Z

LJZ2 - 450 X 3700Z

Double Head Cutting Machine for Aluminium Window - LJZ2 - 450 X 3700Z

Product Descriptions.

    Designed for aluminium profiles cutting used in aluminium windows and aluminium curtain walls

    • Cutting Aluminium profile.
    • The machine is used for cutting -45°~90°~45°.
    • Equipped high-precision linear guide-rail, high cutting accuracy, easy to move the movable head.
    • The machine with dual-purpose, not only can cut profiles, but also can cut corner connector.(optional)
    • It features of stable structure, good rigidity, safety and reliability, high precision, large cutting
    range, high efficiency, easy operation.
    • Precision ball-screw rod drives the movable head to move
    • Stable and uniform motion of saw blades feeding through hydro-pneumatic damping cylinders
    • Self-opening safety cover secures the operator against injury from high-speed rotation saw blades
    •   The two working head can work individually or simultaneously
    • Profile clamping in horizontal and vertical directions
    • Industrial dust exhaust
    • Bearing conveyor for the movable head
    • Intermediate profile support for long size cutting
    • Power supply protects the system from voltage overload

Technicial Specifications

    • Power Supply: 380-400 V, 3 ph, 50-60 Hz
    • Total KW : 3 kW
    • Air pressure : 5-8 bar
    • Spindle speed : 3100 rpm
    • Saw Blade Specification : D=450mm, d=30mm
    • Cutting Length : 580 – 3700mm
    • Cutting Angles : 90°, 45°, -45°
    • Cutting width * height : 90° 135x300mm
                                              45° 135x200mm
    • Cutting angle accuracy error : ±5’
    • Cutting material flatness : ≤0.10mm
    • Cutting material varticality : ≤0.10mm
    • Cutting material surface roughness : Ra12.5µm
    • Outside Dimension : 4500*1750*1440mm
    • Weight (about) : 1080Kg
