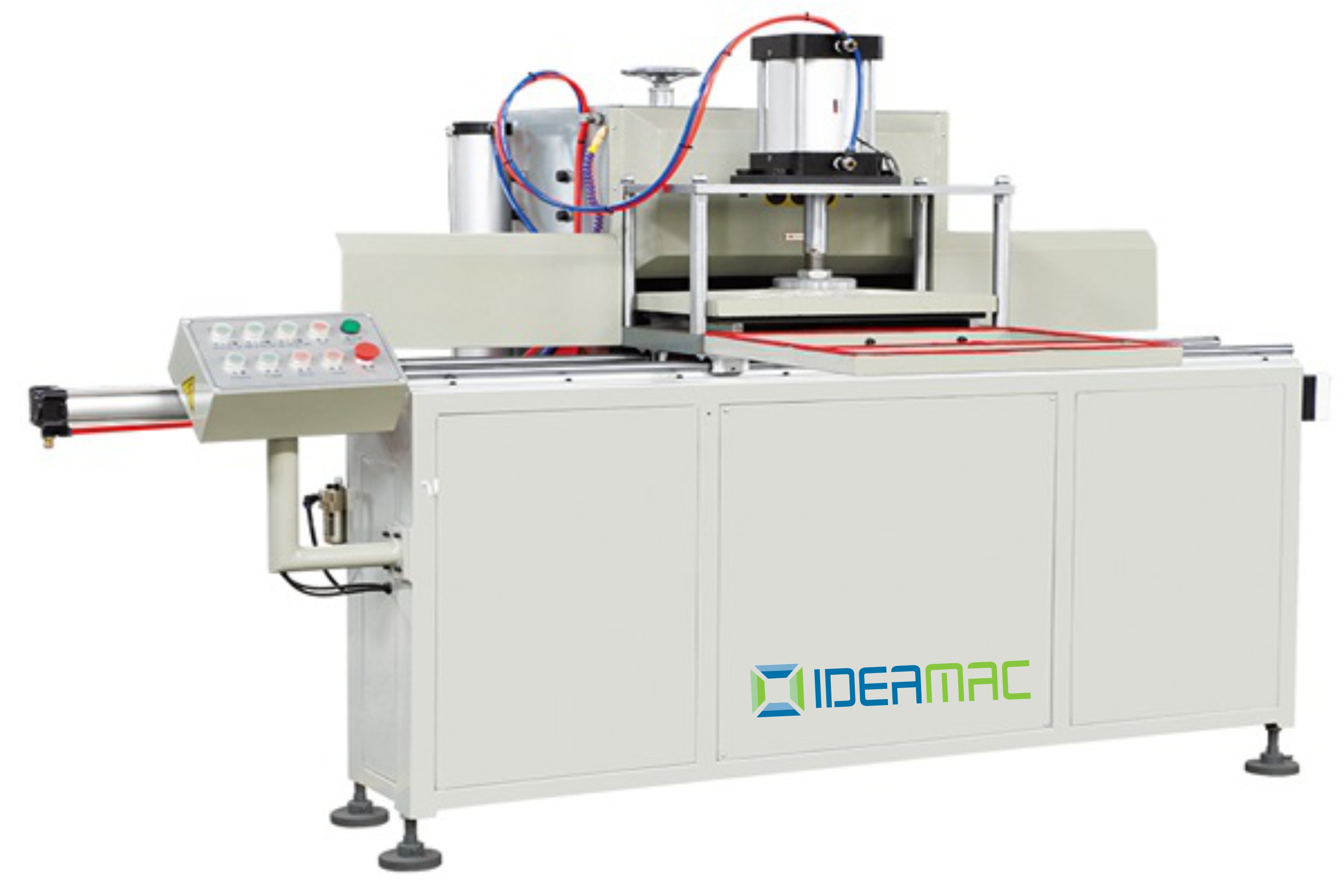

Auto End Milling Machine for Aluminium Window - LXD-230
Auto End Milling Machine for Aluminium Window - LXD-230

LXD-230

Auto End Milling Machine for Aluminium Window - LXD-230

Product Descriptions.

    Designed for end milling of Aluminium and UPVC profiles for mass production

    • Multi-piece cutter position can be adjusted to adapt to the processing of aluminum profiles of different shapes and sizes
    • The hydraulic damping cylinder pushes the tool to feed, making the work more stable
    • The profile pressure plate adds a rubber structure to prevent the profile from being crushed and deformed
    • Machine with height-adjustable and position-adjustable cutter, it can mill different kinds of profiles, saving the production period and cost of cutting tools.
    • Machine with large work bench and long cutting stroke, it can mill 4-6 aluminum profiles in
    one operation, high efficiency.
    • Hydraulic damping cylinders push profiles feeding, making the machine run stably.
    • The rubber gasket on clamping plate can stop profile damage and deformation.

Technicial Specifications

    • Power Supply : 380 V, 3 ph, 50-60 Hz
    • Input Power: 4.4 Kw
    • Air Consumption : 150 lt / min
    • Air Pressure : 5-8 Bar
    • Motor Rotational Speed : 2800r/min
    • Main Shaft Diameter : φ 32 mm
    • Milling Cutter Diameter : φ 230 mm
    • Machine Length : 1650 mm
    • Machine Width : 670 mm
    • Machine Height : 1420 mm
    • Machine Weight : 300 Kgs
